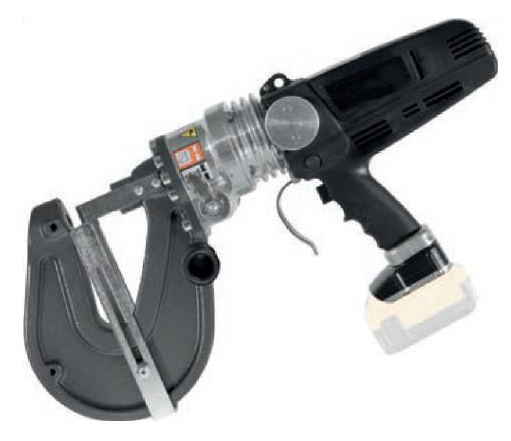

Description

Features:

· Suitable for punching steel up to max. Ø30mm.

· Release lever in case of jamming.

· Adjustable counterholder for the steel.

· Includes 1 set of round punch die, diameter of choice.

Technical information:

· Punching capacity: max. Ø30mm in 2mm thickness up to max. Ø10 at 10mm thickness (S235/S355)

· Free space between punch and die is 15mm

· Voltage: 18V

· Hydraulic power: 15ton / 700bar

· Dimensions (mm): 567x196x273

· Weight: 14,5 kg (without battery 0.7kg)

*Excluding battery and charger.
