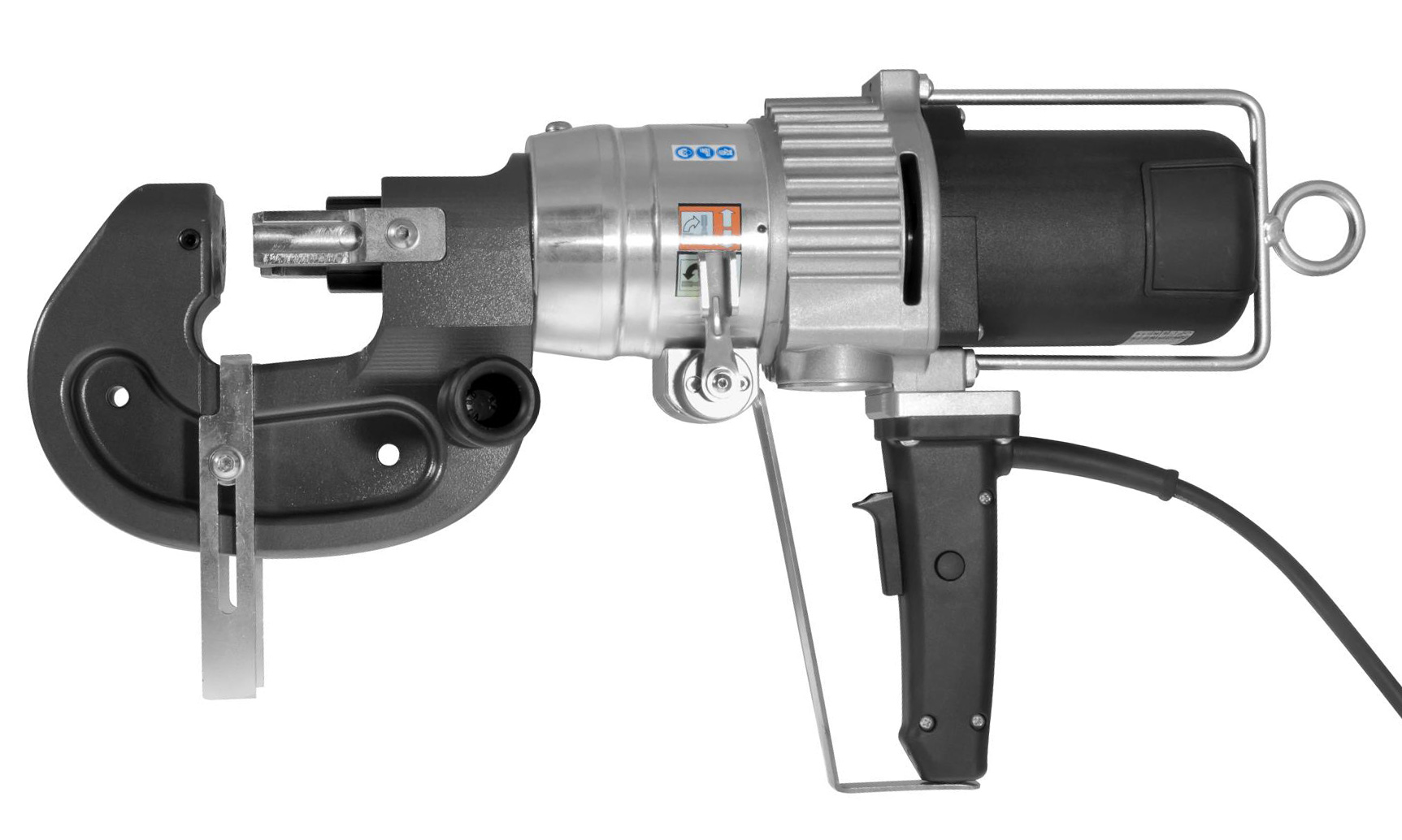

Mobile electro-hydraulic punching machine MPM28 230V / 50Hz

303.10004
Mobile electro-hydraulic punching machine MPM28 230V / 50Hz
On stock
  • Professional and wide range of products
  • Excellent service and quality
  • Quick delivery

Description

Features:

· Suitable for punching steel up to max. Ø30mm

· Release lever in case of jamming

· Adjustable counterholder for the steel

· Includes 1 set of round punch die, diameter of choice

· Equipped with lifting hook at rearend

Technical specifications:

· Punching capacity: max. Ø30mm to 8mm thickness up to max. Ø16 at 15mm thickness (S235/S355)

· Free space between punch and die is 16mm

· Voltage: 230V / 50Hz

· Power: 1400W

· Hydraulic power: 28ton / 550bar

· Dimensions (mm): 645x229x348

· Weight: 25.4

More information about this product?

Download as PDF

Technical specifications

Weight 35 kilo
Article number 303.10004
